Nanocrystalline FeCuNbSiB powder core (26.92 x 14.73 x 14.18 mm, permeability 60)
Details:

Stock# N-D27H14U60

Nanocrystalline Fe-Cu-Nb-Si-B powder core
Composition (at%): 0-1.0 Co, 0.5-1.5 Cu, 2-4 Nb, 20-25 Si+B, bal. Fe
AL: 96 nH/N2
Permeability: 60



Dimensions of Toroidal Cores (mm)



OD (max.)

ID (min.)

H (max.)



Before Coating

26.92

14.73

14.18



After Coating

27.70

14.10

14.99




Magnetic Dimensions

Cross-Sectional Area (Ae)

Magnetic Path Length (Le)

Window

Area (Wa)

Volume (Vol.)

0.818 cm2

6.35 cm

1.56 cm2

5.20 cm3

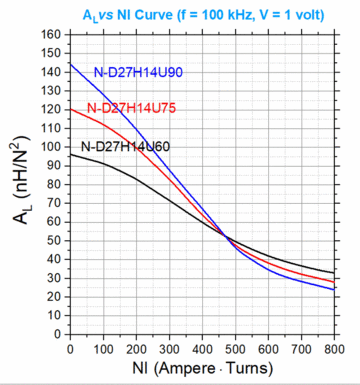

Magnetic Property

Stock No.

AL (nH/N2)

Permeability m

N-D27H14U26

41

26

N-D27H14U60

96

60

N-D27H14U75

120

75

N-D27H14U90

144

90


Winding Information

AWG Wire

Single Layer

AWG Wire

Single Layer

No.

Dia. (mm)

Turns

Resistance (mW)

No.

Dia. (mm)

Turns

Resistance (mW)

12

2.13

16

4.26

21

0.785

47

88.0

13

1.90

18

5.96

22

0.701

53

124

14

1.71

20

8.29

23

0.632

59

173

15

1.53

23

11.6

24

0.566

66

242

16

1.37

26

16.4

25

0.505

74

341

17

1.22

29

19.0

26

0.452

83

480

18

1.09

33

32.0

27

0.409

93

667

19

0.980

37

44.9

28

0.366

104

941

20

0.879

42

62.8

29

0.330

115

1288
